Grinding experts set focus on automation and digitalisation


Post Date: 21 Jul 2022    Viewed: 1385
The new home of grinding technology, Grinding Hub, celebrated its premiere in Stuttgart in May 2022. More than 370 well-known manufacturers from 23 countries presented numerous innovations across the entire grinding technology process chain — with a clear trend towards automation and digitalisation.



Swiss startup Rimon has developed a code-free platform that allows companies to create instruction-based applications for their employees — from technical specialists to medical staff. Instead of printing operating instructions on paper, users can be guided interactively with the support of augmented reality through technically demanding tasks.(Source: Landesmesse Stuttgart/ Uli Regenscheit )

Manufacturers of cylindrical and non-cylindrical grinding machines, grinding machines for cutting and chipping tools, surface grinding machines, grinding, polishing and honing media as well as clamping and filter systems and grinding oils were represented in considerable numbers at Grinding Hub 2022. Special exhibition areas such as the Grinding Solution Park Industry, the Grinding Solution Park Science and the Startup Hub attracted considerable attention. In addition, trend topics such as automation, digitalization and networking were reflected in the exhibitors’ portfolios at the event. The main technical highlights of the event, including grinding and process technology, tool concepts and interface technology, are presented below.

Future-oriented grinding machines in response to increasingly exacting requirements

Machine innovations presented at the Grinding Hub included offerings from well-known manufacturers such as Haas Schleifmaschinen from Trossingen, Erwin Junker Maschinenfabrik from Nordrach, Rollomatic from Le Landeron (Switzerland), United Grinding Group Management from Bern (Switzerland) and Ziersch from Ilmenau. The trends here include greater cost-effectiveness in production, increased quality even for complex geometries, and redesigned machining strategies.

Grinding machine manufacturer Haas showcased its Multigrind Radical tool grinding machine. This is a complete solution capable of producing both rotary and plate tools. The manufacturer emphasized the overall reduction in non-productive time. A further stand-out feature of the machine is the short changeover times for tools and grinding wheels. The operating concept of the Multigrind Radical includes decoupled operation of the machine.

Another innovation from the Baden-Württemberg-based company is the Multigrind CB XL. It can machine complex workpieces up to 3,200 mm in length in compliance with all specifications. Manufacturing in one setup is particularly attractive for manufacturers of large tools, such as spline shafts or gear cutting tools. In addition, the machine is suitable for machining long filigree parts such as aircraft landing gear parts, turbine components, ball screw drives, racks and guideways. This is made possible by the symmetrical design of the Haas Multigrind CB XL, which ensures the necessary stability and rigidity.

In the tool grinding sector, Rollomatic announced the launch of its new Grind Smart 830XW grinding machine. The design enables the machining of tools in the 0.05 mm to 32 mm diameter range. The machine is equipped with hydrostatic linear slides and linear motor technologies. Rollomatic points to optimizations in the surface finishes and cutting-edge qualities.

United Grinding Group also presented its Blohm Planomat XT Essential, a high-precision surface grinding machine in the entry-level segment. Two further innovations from Studer were on display. The S36 external cylindrical grinding machine is designed for small to medium-size workpieces. It is particularly suitable for use in the construction of vehicles, hydraulic systems, pumps and tools. A special feature of the machine is its acceptance of large grinding wheels with a maximum width of 125 mm and diameters of up to 610 mm. The S36 is equipped with C.O.R.E technology (discussed below).

United Grinding Group also presented the new Helitronic G200 from Walter, which is used for tool machining. This is a compact tool grinding machine with a footprint of less than 2.3 m2. It can produce or resharpen rotationally symmetrical tools within a diameter range from 1 mm to 125 mm.

Ziersch is moving into a new production grinding segment with its ZR 35 cylindrical grinding machine. Ziersch proclaims the high cutting performance and superior precision of the new machine. It features a control system from Ratingen-based Mitsubishi Electric, making it suitable for oblique grinding. Another special feature of this machine design is the vertical grinding wheel movement instead of the conventional horizontal action. The ZR 35 achieves short cycle times thanks to an oblique grinding arrangement with an angle that is adjustable from plus 6 to minus 10°, and an integrated automatic part change system. The new arrangement was specially developed for the highly rigid CNC axes for this purpose.

Innovative grinding wheel concepts and grinding wheel conditioning

At Grinding Hub, numerous grinding wheel concepts from various grinding wheel manufacturers, all aimed at producing changes in micro and macro geometry, were on display. The companies driving these trends include Atlantic from Bonn, Krebs & Riedel Schleifscheibenfabrik from Karlshafen and Riegger Diamantwerkzeuge from Affalterbach.

Atlantic presented a patented multi-layer diamond spherical disk at Grinding Hub. It is particularly suitable for machining spheres made of silicon nitride, as used in rolling bearings, for example. It is superior to an electroplated grinding wheel, for example, in that the profile can be adapted to other sphere diameters. It should be emphasized that the new grinding wheel concept is flexible and can be used for large and small batches. The grinding wheel is available in sizes up to an outer diameter of 700 mm.

Krebs & Riedel presented a further newly developed abrasive grain concept of the “Blue Moon Tz” grinding wheel technology. This is a precision-formed abrasive grain with a trapezoidal rod shape that is very sharp-edged and microcrystalline. The new abrasive grain has the special property of developing a very low thermal load in the contact zone. This advantage becomes particularly evident when machining very long contact lengths. Typical applications include creepfeed grinding, raceway grinding and profile grinding of gears with large modules.

Grinding wheel manufacturer Riegger unveiled a world first, the Trippel Grind Brush. This tool system concept makes it possible to combine peripheral grinding with edge rounding, e.g. of indexable inserts, in one clamping. Depending on the application, an exchangeable brush for edge rounding can be attached on the face or circumference by means of two different tool concepts.

Mitsubishi Electric and the Institute of Precision Machining (KSF) at Furtwangen University presented the spark-erosion dressing of resin, hybrid and metal-bonded grinding wheels and diamond dressing tools on their joint stand. Hard and brittle materials, such as tungsten carbide and ceramics, are often ground using resin bonded grinding wheels. Metal bond grinding wheels, on the other hand, offer much greater dimensional stability. Spark-erosion dressing allows the force-free creation of highly reproducible complex and filigree profile geometries on grinding tools with conductive bonds. The CBN and diamond grains are not directly affected by the spark erosion process, meaning that the method allows their protrusion on the grinding wheel surface to be significantly increased. The metal bond grinding wheels thus have the advantage of raising efficiency levels by a significant factor through higher feeding rates, while at the same time meeting the requirements for consistent dimensional stability and high precision. Another advantage is the considerable increase in tool life. However, a disadvantage of this grinding wheel concept is the complex dressing process. To counteract this, processes have been developed for Mitsubishi Electric's V350 Generator wire-cut EDM machine that open up new cost-effective possibilities for dressing metal bond grinding wheels.

Intelligent interface technology setting new standards in digitalization

The important topic of digitalization in the context of Industry 4.0 also featured prominently at Grinding Hub, an example of which is presented below.

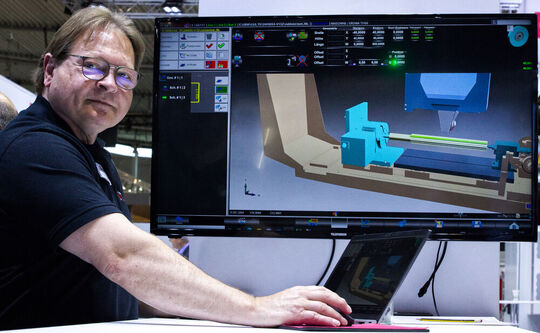

The CGS (Complete Grinding Solution) external programming system from Japanese manufacturer Amada links the functions of optional CNC machine assemblies and of stand-alone systems.(Source: Amada )

Amada from Isehara in Japan offers visualized programming solutions for measurement-controlled grinding and the automation of grinding processes. The CGS (Complete Grinding Solution) external programming system represents a crucial link in this chain. It links the functions of optional CNC machine assemblies and stand-alone systems. The CAD data is first imported, and the workpiece is then virtually positioned on the clamping surface of the machine as a solid three-dimensional model. The surfaces to be machined can be selected and then linked to a specific grinding and dressing technology for the respective machining operation. The automatic probe, which can be installed on all Amada machines, and a probe control for structure-borne sound can also be integrated. The measurement positions can be selected by a click of the mouse to generate a grinding measurement program (including measurement compensation) during machining. The automatic probe is also used to synchronize the actual workpiece position and the virtual programming before machining starts. The result is reliable machining with structured programs and operation, regardless of the machine running time. The CGS solutions range from simple and complex machining to multiple clamping of different workpieces on the machining table and the integration of dividing heads for automatic 5-axis machining. Setup and programming times are significantly reduced. Teach-in functions with program automation, supplemented by structure-borne sound sensor technology, are incorporated in the rapid and intelligent workpiece setup. Integrated in the CGS programming system is the probe control which also influences the machining process. The high workpiece precision does away with the need for a second check during machining. Dimensions are checked on the machine itself with an automatic probe. Any deviations are automatically compensated.

Anca from Melbourne (Australia) has developed its Toolroom RN35 software in order to reduce cycle times and thereby improve the productivity of the grinding process as well as reduce ongoing machine costs. This program optimizes the process in terms of tool quality and grinding wheel life. It uses tool simulation models to calculate and reduce gap dimensions in order to minimize air grinding times.

C.O.R.E technology (Customer Oriented Revolution) is an innovative operating system that United Grinding Group has developed for its machines and is presenting for the first time in the German-speaking countries at Grinding Hub. The uniform software architecture enables the machines to exchange data without difficulty. Thanks to the built-in umati interface, it also works with third-party systems. Furthermore, the operating system provides access to United Grinding Digital Solutions products without the need to install any additional hardware. Not least, C.O.R.E provides the technical basis for connecting to the IIoT, for different data applications and for uniform operation. Based on self-explanatory icons, navigation through the machine menu and the process steps is simple and fast. The user is offered a modern and clear multi-touch display with very few keys. The entire user interface can be configured freely and individually. Configurations can be automatically retrieved via an RFID chip. Further advantages such as the uniform user interface shorten the amount of training required. A role-specific interface also helps avoid errors and increases programming efficiency. An integrated front camera and Bluetooth headset enable the fast and direct exchange of real-time information.

The new Multigrind Horizon grinding software from Haas can be implemented within a company's own network and run intuitively on tablets, laptops or smartphones. Parameterization, templates and ERP information are used to create the data basis. The programming is simple and allows rapid production changeovers. Enhanced performance, rapid service, regular updates, physical information, safety instructions, process parameters and more can be retrieved from the cloud, as required. Multimation takes care of all these software-based solutions. This software has been specially developed by Haas to match manual and automatic workflows precisely to customer requirements without any loss of process time. The interface to the customer’s own network makes it possible to map and control the entire manufacturing process. Process components such as manual scanners, automation solutions, cleaning systems or labeling machines etc. can be added and removed digitally, as desired. In the event of a malfunction, users can use Multimation to bypass individual process components and then regain control again once the fault has been rectified. This in turn allows the downtime to be kept to a minimum.

High degree of automation shortening throughput times

Another trend which was evident in the manufacturing sector even before Industry 4.0 is cost savings made possible by a high degree of automation. The three key aspects discussed below represent best practices.



Australian company Anca facilitates continuous, lights-out manufacturing that significantly reduces unproductive downtime with its Integrated Manufacturing System (Aims).(Source: Landesmesse Stuttgart / Uli Regenscheit )

The Australian manufacturer Anca demonstrated its Integrated Manufacturing System (Aims) on its stand. This takes cutting tool production to a new level by optimizing manufacturing and networking. Aims ensures continuous lights-out manufacturing that can significantly reduce unproductive downtime. This is achieved by means of an automatic workpiece transport system between machines and measuring systems as well as by automated post-measurement compensation of the machine. This permits plant-wide connectivity.

United Grinding Group presented the new Uniload system for loading the two Studer S31 and S33 universal external cylindrical grinding machines. It is very simple to operate, as the user merely needs to know the dimensions and weight of the workpiece. No special training is therefore required for operation and programming. With the racks fully loaded, automated processing for about one hour is possible.

Rollomatic has also introduced a new system in the ever-topical field of lights-out manufacturing. The Swiss company presented its new Smart Factory concept, including various types of robots, on its stand. Rollomatic's goals here are to produce within tight tolerances over a number of days and to interact with external robotic and automation systems.

Precise measurement technology

In order to meet the ever more exacting tolerances, the demands on the measurement technology used for acquiring data are also increasing. Laser measuring systems and automated quality control were also on display at Grinding Hub.

Another recently launched development for the cutting tool industry is Anca's Laser Ultra (LC50-DIGILOG) measuring system. Laser Ultra is an automatic external profile measurement and compensation system for Anca's FX, TX and MX machines. It can achieve accuracy levels down to 2 µm in self-controlled production grinding – ideal for measuring and compensating tools in order to maintain fine tolerances. A special feature here is that the laser is an in-process measuring technology that does not require the tools to be removed from the machine.

In addition, Anca has presented its new CPX in-process AD quality control measurement system. It can monitor and control the outside diameter of ground blanks during batch production. The measuring system is used to calculate, control and monitor the Cp and CpK process capability values and report them to the user via a statistical process control (SPC).

E. Zoller from Pleidelsheim was in Stuttgart to exhibit its automation solutions and innovative measuring machine devices. The family-owned technology company’s Roboset 2 is a fully automatic tool measuring system that independently carries out the complete sequence, including everything from the chucking process to logging. The Genius is a versatile universal measuring machine that can be functionally adapted depending on the type of add-on. The variations here range from the measurement of geometries on cutting edge and threading tools through to the automatic detection of tool breakage on each cutting edge. The high-precision inspection application mµ Focus delivers exact cutting-edge analysis results. This innovative instrument measures both the cutting-edge preparation and the surface roughness of the tools down to the nearest micrometer. Zoller offers its TMS Tool Management Solutions for intelligent tool management. The storage system optimizes the work process, as all data and current conditions are stored in the database and can easily be retrieved at any time.

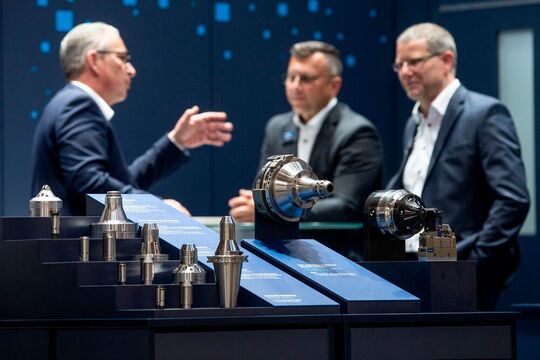

3D technology and the adapted surface structure of the Ampilio chuck from Schunk enables significantly faster expansion rates compared to conventional expansion technology.(Source: Landesmesse Stuttgart/ Uli Regenscheit )

Secondary machining processes: High-precision clamping technology and reduced cooling lubricant consumption

The clamping technology specialist Schunk from Lauffen am Neckar presented its new clamping device concept for tool grinding at Grinding Hub. The Ampilio chuck innovation has been specially developed for 24/7 production. 3D technology and an adapted surface structure make it possible to achieve significantly higher expansion rates compared to conventional expansion technology. A coordinated manufacturing strategy and specially developed intermediate bushings are used to achieve concentricity accuracies down to less than 3 µm with direct clamping and a maximum of 5 µm with indirect clamping (including intermediate bushing). Another positive aspect is that higher insertion clearances can be accommodated in the automation, which reduces wear on the chuck and thus greatly increases its service life. The chucks are available in a diameter range from 20 to 32 mm.

The automation of machining fluids is still in its infancy. Five years ago, the Motorex-Bucher Group from Switzerland addressed this task and has since built up a product portfolio for both water and oil-based systems. A large proportion of users measure, maintain and fill their machines by hand and enter the values in handwritten lists. Consuming over 25,000 tonnes of coolant per year, more than 200,000 cooling lubricant systems are in operation in Germany alone. The Fluidlynx development is a smart solution that can be used in a whole range of applications. It has given rise to numerous patent applications and manufacturing software solutions that enable automated fluid operation 24 hours a day, 365 days a year. According to Motorex, the solution will help achieve a 15 percent reduction in the consumption of cooling lubricant concentrate. The manufacturer claims that no more “geometrical changes arise due to lower water temperatures”, as the mixing process is completely different to that used in previous applications. There is an increase in overall equipment effectiveness (OEE) due to 100 percent cooling lubricant availability and the long-term accuracy of the fluid limits. Contact eczema and allergies remain the primary cause of absenteeism in the metal industry. This has been responded to by adapting algorithms in the maintenance system to ensure that both the pH value as well as the concentration and conductivity levels always stay within the target range. The Easy Monitoring APP takes care of photometrically controlling the applications and checking the sensors in real time – and correcting them if necessary.

Focus on the future with start-ups

Rimon Technologies is a spin-off from ETH Zurich. The start-up has developed a code-free platform that allows companies to create instruction-based applications for their employees (from technical specialists to medical staff). This platform makes it possible to reduce the number of errors and to negotiate processes more effectively. All steps are automatically documented in the background. Instead of printing out operating instructions on paper, users can be guided interactively through technically demanding tasks with the support of augmented reality. Another great advantage is that the hands remain free for manual tasks.

Atlas VR AG, also a spin-off of ETH Zurich, is revolutionizing training and education processes with virtual reality (VR). The VR training solutions enable active learning in an intuitive learning-by-doing process. This allows learners to be trained up on the virtual machine tool while the actual machine is still on its way, or cannot yet be made full use of in production. Considerable costs can be saved in this way compared to conventional training on actual machine tools. In addition, virtual training is proven to be more effective and sustainable than traditional training solutions. It is suitable for global use, regardless of the language or location. The company supports its partners at all stages – from the initial contact with VR technology and implementation and roll-out through to service and maintenance during operation.

The start-up Spanflug Technologies from Rattenkirchen showcased its calculation software at the Grinding Hub. This software-as-a-service solution allows users to evaluate the manufacturability of turned and milled parts in just a few seconds in order to quote a price. The Bavarian company celebrated the launch of a new feature in Stuttgart: the software now also automatically calculates grinding cost factors. "Spanflug for Finishers" deploys a pricing algorithm that Spanflug has been using since 2018 on its online platform for the procurement of CNC turned and milled parts. This has since been optimized and now incorporates more than 300,000 turned and milled parts. The calculation software automatically evaluates production-relevant characteristics from CAD models and technical drawings, using them to calculate production times and quotation prices. In addition, the user receives a detailed breakdown of the calculated costs for materials, setup, programming, manufacturing and shipping. Unveiled at GrindingHub, the latest version of the software also allows users to automatically calculate turned and milled parts including grinding. Spanflug operates a manufacturing platform for CNC turned and milled parts and offers customers a fully automated procurement process which includes everything from instant pricing to ordering in the online store. The CNC components are manufactured by a network of 200 authorized suppliers in Germany.

G-Elements from Wallisellen (Switzerland) has developed an innovative CNC cylindrical grinding machine: the Omnia G-300. This is aimed at users who are looking for a cylindrical grinding machine that takes up little space, achieves high precision levels, meets the highest safety standards, grinds efficiently, is easy to operate and has low service costs. G-Elements states that accuracy levels within tolerances of ± 2 µm can easily be achieved with the Omnia G-300. This — and more — is made possible by the new axis concept, which was developed to meet the particular requirements of cylindrical grinding.

Ultratec Anlagentechnik Münz from Laupheim presented its A25 ultrasonic deburring system on its stand. Ground hydraulic parts were deburred live on the stand using two different sonotrodes. According to the company, its highly innovative ultrasonic and cavitation-based deburring systems allow high-precision components, cutting tools and components with control edges to be deburred automatically, leaving them “sharp-edged but burr-free”. The component dimensions and the mechanical technological values do not change. Even sensitive surfaces can be carefully deburred using ultrasound. The highly localized deburring of individual edges and bores is possible due to the dedicated process control. Micro parts for the optics or watchmaking industry as well as components weighing up to 20 kg can be reliably machined.

During ultrasonic deburring, a sonotrode excited by an ultrasonic generator oscillates back and forth over a distance of 0.1 mm 20,000 times per second in a process water basin. The burrs can be raised and carefully removed by moving the edges and bores of a component to be deburred along the sonotrode tip at a defined angle with the help of an industrial robot that can be used in round-the-clock operation. The ultrasonic process requires only about five percent of the energy needed for ECM or high-pressure waterjet deburring and the process water can readily be disposed of, giving this process a promising future in terms of resource conservation and environmental protection.

The new hub of grinding technology

The exhibitors at Grinding Hub have risen to meet customers’ specific wishes and the growing market demands with innovative grinding machines, new tool concepts and precise clamping technology. The claim of the new trade show — “Brings solutions to the surface” — has thus been fulfilled in the best possible way. In the different areas of intelligent interface technology, the companies addressed the overriding subject of Industry 4.0 in the context of digitalization and thus responded successfully to the overall theme of the Grinding Hub. Visitors can look forward to marveling at the progress made in these areas — and much more besides in Stuttgart in two years' time from 14 to 17 May 2024.

* Jonathan Sischka, B. Sc., Institute of Precision Machining KSF, Furtwangen University
